Shear Testing Machine
Compliant with mechanical performance standards for rubber bearings and shock absorbers in transportation engineering, suitable for highway, railway, bridge and related projects.
- JT-T4, JTT 391, GB T-17955, GB 20688.4, TBT 1893, TBT 2331, ISO 22762-1~3, JG/T 118, JT/T 4, TB/T 3320, EN 1337-3, EN 15129

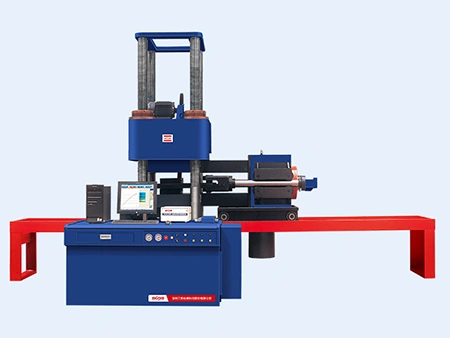

Servo-hydraulic compression-shear testing machines apply controlled vertical and horizontal forces to finished rubber bearings and seismic isolation devices used in bridges and other structures. To simulate the forces that these bearings and isolation devices face in service, the compression-shear tester presses them vertically and pushes them sideways while sensors track the applied loads and any resulting deformation. According to the particular test arrangement, these compression-shear testers are capable of determining ultimate compressive strength and compressive elastic modulus, investigating shear bonding and any changes that occur after ageing, finding the friction coefficient and assessing rotational performance, and measuring the axial and radial deformation of bridge pot bearings when they are under load.
| MODEL | | | | |
| Accuracy | Class 1 | |||
| HPU Capacity (L/min) | 17.5 | 20 | 35 | |
| Frame Dimension (mm) | 5,200×1,200×3030 | 5,600×1,750×3,900 | 7,000×2,150×5,600 | 10,721×3,100×5,838 |
| HPU Dimension (mm) | 1,500×1,100×1270 | 1,750×1,020×1,350 | 1,750×1,250×900 | 3,250×1,500×1,810 |
| Weight (kg) | 14,000 | 38,000 | 52,000 | 86,000 |
| Power (kW) | 12 | 15 | 36 | 48 |
| Max. Test Force (kN) | 5,000 | 10,000 | 20,000 | 30,000 |
| Distance of Columns (mm) | 795×495 | 1,200×440 | 1,700×840 | 2,100×1,440 |
| Compression Space (mm) | 0-1,000 | 800 | 1,000 | |
| Space Adjust Mode | Worm and Gear | PISTON | ||
| Xhead Speed (mm/min) | 300 | / | ||
| Platens Size (mm) | 710×710 | 1,000×1,000 | 1,500×1,500 | 2,000×2,000 |
| Ram Stroke (mm) | 80 | 800 | 1,000 | |
| Loading Speed (mm/min) | 0-50 | |||
| Axial deformation measurement Range (mm) | 0-10 | 0-20 | ||
| Radial deformation measurement range | 0-10 | 0-20 | ||
| Deformation Resolution (mm) | 0.001 | |||
| Horizontal Shear Test Section | ||||
| Max. Test Force(kN) | 1,000 | 2,000 | 4,000 | 6,000 |
| Ram Stroke(mm) | 200 | 300 | ||
| Shear Platens(mm) | 710×710 | 1,000×1,000 | 1,500×1,500 | 2,300×1,500 |
| Loading Speed(mm/min) | 0-100 | |||
| Displacement Measuring Range(mm) | 0-200 | 0-300 | ||
| Displacement Resolution(mm) | 0.01 | |||
| Power(kW) | 1.5 | 2.2 | ||
| Angle Test Section | ||||
| Max. Rotation Torque (kN·m) | 300 | 600 | 1,000 | 2,000 |
| Ram Stroke (mm) | 150 | |||
| Rotating Plate Dimension (mm) | 1,300×710×150 | 1,350×1,000×150 | 1,750×1,500×200 | 3,260×1,500×240 |
| Displacement Measuring Range (mm) | 0-10 | 0-20 | ||
| Displacement Measurement Resolution (mm) | 0.001 | |||
