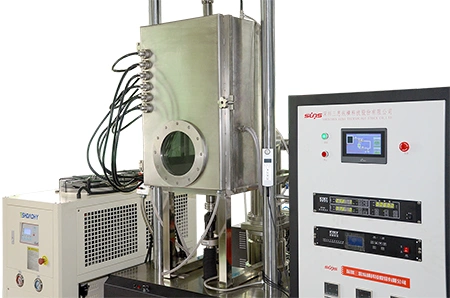

High Temperature Vacuum Furnace

High-temperature vacuum furnaces provide the controlled environment required to test materials under heat and vacuum conditions. Their main components include a vacuum system, a heating chamber, temperature measurement and control equipment, and a water-cooling system. Each part controls a different aspect of the test environment, from the vacuum level and heating conditions to temperature monitoring and equipment cooling.

Specifications
Furnace Structure Split-type resistance furnace with three-section heating wire heating and sectional independent control
Working Temperature Range 300–1100℃
Effective Uniform Temperature Zone Length 150 mm
Inner Diameter of Furnace Chamber ⌀90 mm
Heating Element Resistance wire
Service Life of Furnace Continuous service life over 30,000 hours at temperature ≤1200℃
Average Furnace Surface Temperature ≤90℃ at 1200℃; ≤50℃ at 700℃
Furnace Power AC 380V±10%, 50Hz, 5kW
Temperature Control Instrument Shimaden temperature controller of Class 0.3, equipped with digital PID regulator.
Temperature Measuring Thermocouple Type S thermocouple (working temperature range: 200℃–1200℃)
Temperature Fluctuation ±2℃ (200~600℃);
±3℃ (600~900℃);
±4℃ (900~1200℃)
Ultimate Vacuum Degree ≤50 Pa
